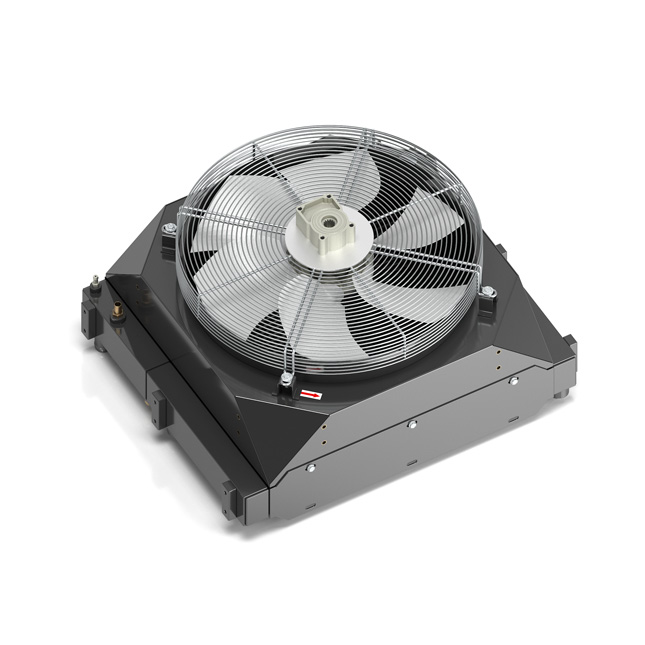

Cooling unit for 74kW FTP N45 engine

The traditional installation of the radiator in a vertical and front position towards the engine is often not possible.

If the shape of the vehicle doesn't allow the traditional installation, the cooling module could be horizontally or obliquely mounted. However there are many precautions to adopt in order to ensure correct engine operation. The vehicle in which this cooling unit is installed is an equipped drill with a 74kW FTP N45 engine. The cooler is mounted in the backside of the vehicle, above the engine, horizontally and inclined by 30°. In cases where the combination engine-radiator must be mounted in two different vehicles, the cooling unit can be standardized for both installations, both vertical and horizontal.

prod_HRA4903
